How to Properly Replace and Set Rope Packing on a B3ZRM Style Water Truck Pump
- Blake Dill
- Feb 12
- 3 min read
Water Truck Rope Packing Replacement Guide
Rope packing is simple, durable, and reliable when installed and adjusted correctly. Many premature leaks, shaft sleeve failures, and overheating issues come from improper packing installation rather than defective parts.
If your B3ZRM-style water truck centrifugal pump is leaking excessively or you are repacking during maintenance, following the correct procedure makes all the difference. Use this guide to familiarize yourself with the steps necessary to replace your water truck's rope packing.
Understanding What Rope Packing Is Supposed to Do
Unlike mechanical seals, rope packing is not meant to be completely dry. Its job is to:
• Control leakage
• Lubricate the shaft sleeve
• Remove friction heat
A slow, steady drip during operation is normal and necessary. Trying to make a packed pump completely leak-free is one of the most common mistakes.
Step 1: Remove Old Packing Completely
Before installing new packing:
• Loosen and remove the packing gland
• Use a packing puller to extract ALL old packing rings
• Clean the seal chamber thoroughly
• Inspect the shaft sleeve for grooves or scoring
Installing new packing on top of old packing prevents proper compression and leads to immediate leaks.
If the shaft sleeve is grooved, replacing packing alone will not fix the problem. The sleeve should also be replaced.
Step 2: Cut Packing Rings to the Correct Length
Never wrap one long piece of packing around the shaft.
Instead:
Wrap packing around the shaft sleeve to measure
Cut individual rings with a sharp knife

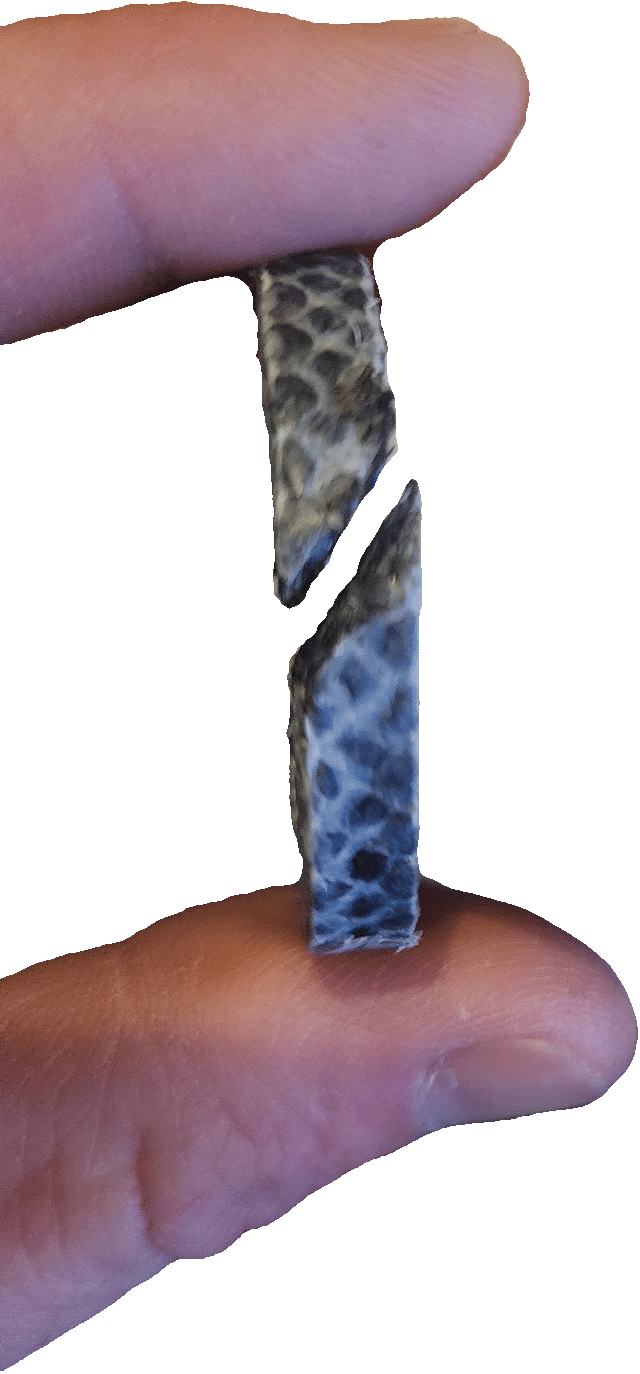

Use a 45-degree scarf cut for each ring
Each ring should fit snugly around the shaft without excessive overlap.
Step 3: Stagger the Ring Joints
Install packing one ring at a time, pushing each ring fully into the seal chamber before installing the next.
Important:
• Stagger each ring joint 90 degrees apart
• Do not align all the cuts in one place
Staggering prevents straight leak paths through the packing set.
Step 4: Install the Gland and Tighten Evenly
After all rings are installed:
• Reinstall the packing gland
• Tighten the gland nuts finger tight, then an additional small turn
• Make sure the gland goes in straight and evenly
Do not fully tighten at this stage.
Step 5: Start the Water Truck Pump and Allow Controlled Leakage After Packing Replacement
When the pump starts:
• Expect noticeable leakage at first
• Let the pump run for several minutes
• Packing needs time to seat and conform to the shaft sleeve
Gradually tighten the gland nuts evenly on both sides until leakage slows to a steady drip.
Step 6: Final Adjustment After Warm-Up
After 15–30 minutes of operation:
• Check leakage rate
• Check for overheating at the seal chamber
• Tighten slightly if leakage is excessive
Properly set packing should:
• Drip slowly
• Stay cool enough to touch briefly
• Not spray or stream water
Common Misconceptions About Rope-Packed Pumps
A packed pump should not leak
False. A small amount of leakage is required for lubrication and cooling. Tighten it until the leak stops. Over-tightening causes heat buildup, burns the packing, scores the shaft sleeve, and leads to rapid failure.
All packing leaks mean bad packing
False. Leaks often come from worn sleeves, improper ring cuts, or joints lined up instead of staggered.
Packing is a permanent fix
False. Packing is a wear item and requires periodic adjustment and replacement as part of normal maintenance.
Signs Packing Is Set Too Tight
• No leakage at startup
• Seal Chamber too hot to touch
• Packing burns or hardens quickly
• Sleeve wear accelerates
If this happens, loosen the gland slightly to restore lubrication flow.
Signs Packing Is Too Loose
• Steady stream instead of a drip
• Spray or splashing from the seal chamber
• Water reaching the bearings
Tighten gradually and evenly until leakage is controlled.
Routine Maintenance Tips
• Inspect the packing area during regular service
• Replace packing before it fully fails
• Check sleeve condition during every repack
• Avoid running the pump dry
Properly installed rope packing can provide long, reliable service in B3ZRM-style water truck pumps and helps protect more expensive components like shafts, sleeves, and bearings.
If you are servicing your pump, using the correct packing size and material along with proper installation makes the difference between a minor maintenance task and a major repair.
